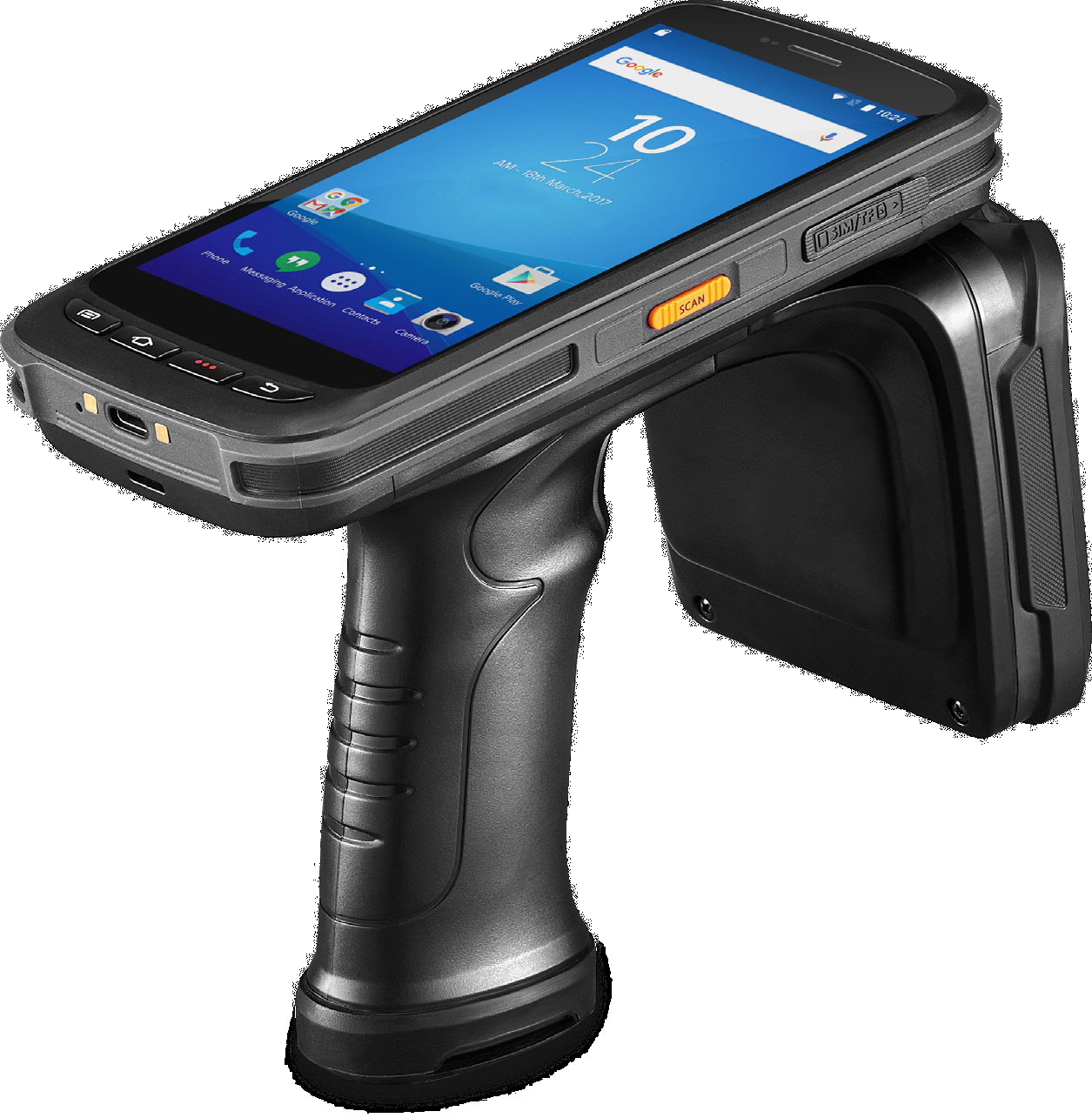

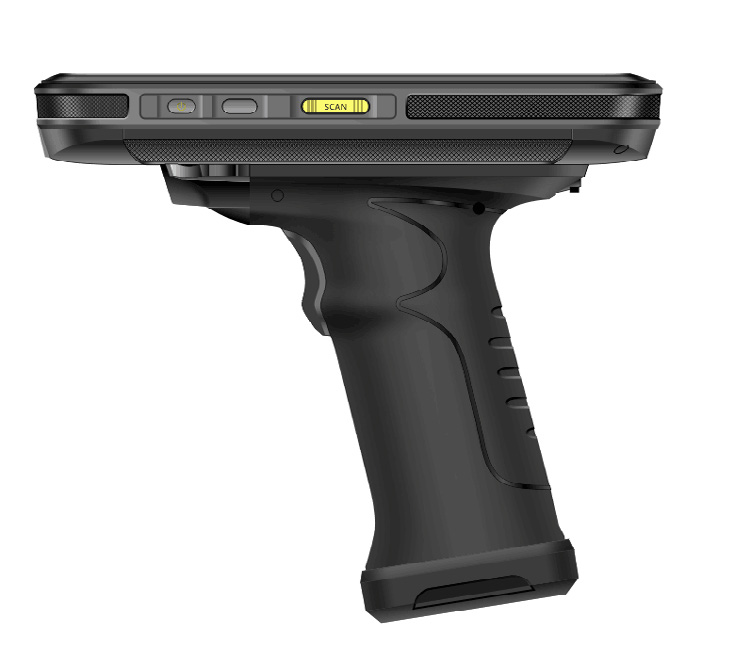

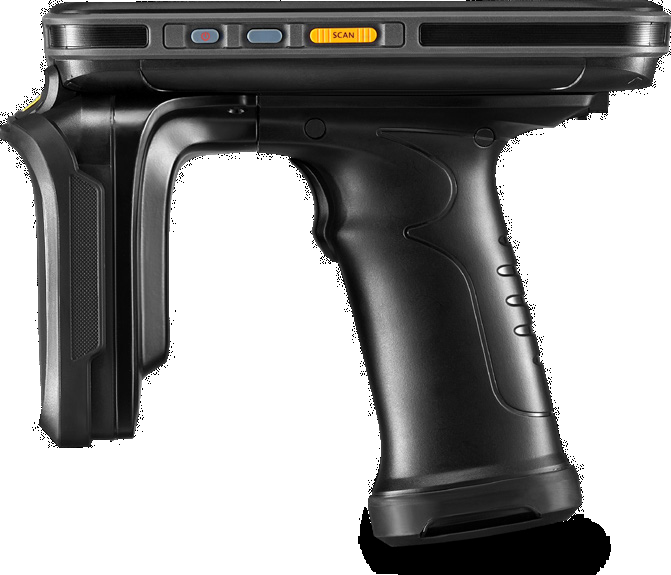

W7400 UHF handheld reader

Specifications

Dimension：164.2 x 80.0 x 24.3 mm / 6.46 x 3.15 x 0.96 in.

WeightNet：654 g / 23.07 oz.

Display：5.2” IPS LTPS 1920 x 1080

Touch Panel: Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported

Power:Li-ion, rechargeable, 8000 mAh

Standby: over 500 hours

Continuous use: over 12 hours (depending on user environment)

Charging time: 3-4 hours (with standard adaptor and USB cable)

Expansion: Slot 1 slot for Nano SIM card, 1 slot for Nno SIM or TF card

Interfaces: USB 2.0 Type-C, OTG, TypeC headphones supported

Sensors :Light sensor, proximity sensor, gravity sensor

Notification:Sound, LED indicator

Audio: 1 microphone; 1 speaker; receiver

Keypad: 4 front keys, 1 power key, 2 scan keys, 1 multifunctional key

CPUCPU：Cortex-A53 2.5 GHz Octa-core/ Cortex-A53 2.3 GHz Octa-core

Operating System：Android 13; SafeUEM supported  GMS, FOTA, SafeUEM supported. Committed for a future upgrade to Android 12, 13, and Android 14 pending feasibility

Storage：3 GB + 32 GB  /  4 GB + 64 GB (optional) Supports up to 128 GB Micro SD card

Operating Temp.: -20℃ to 50℃

Storage Temp.:  -40℃ to 70℃C

Humidity: 5% RH – 95% RH non condensing

Drop Specification: Multiple 1.5 m / 4.9 ft. drops (at least 20 times) to the concrete across the operating temperature range

Tumble Specification: 1000 x 0.5 m / 1.64 ft. falls at room temperature

Waterproof: IP65 per IEC sealing specifications

ESD: ±15 KV air discharge, ±6 KV conductive discharge

SDK: Handheld-Wireless Software Development Kit

Language:Java

Environment: Android Studio or Eclipse

Camera:13 MP Autofocus with flash

WWAN: 2G: GSM850/GSM900/DCS1800/PCS1900

3G: WCDMA: B1/B2/B4/B5/B8 CDMA2000 EVDO: BC0  TD-SCDMA: A/F

4G:B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B28A/B28B/B34/B38/B39/B40/

B41(850/1900/2100MHz);GSM/GPRS/Edge (850/900/1800/1900MHz);

WLAN:IEEE802.11 a/b/g/n/ac, 2.4G/5G dual-band, internal antenna

Bluetooth:Bluetooth v2.1+EDR, 3.0+HS, v4.1+HS //Bluetooth 5.0

GNSS:GPS/AGPS, GLONASS, BeiDou; internal antenna

ACCESSORIES:SAC Adaptor, USB Cable, Optional Cradle, Holster , etc.



BARCODE READER(OPTIONAL)

1D Linear Scanner Zebra: SE965; Honeywell: N4313

1D Symbologies:UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.

2D Imager Scanner Zebra: SE4710 / SE4750 / SE4750MR; Honeywell: N6603

2D Symbologies:PDF417, MicroPDF417, Composite, RSS, TLC-39,Datamatrix, QR code, Micro QR code, Aztec,MaxiCode; Postal Codes: US PostNet, US Planet,UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc.



HF RFID Reader (NFC Reader) (OPTIONAL)

Frequency :13.56MHz

Protocol: ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.

Chips: M1 card (S50, S70), CPU card, NFC tags, etc.

Reading /Writing Range: Range 2-4 cm



UHF RFID Reader(OPTIONAL)

Engine: Based on Impinj E710 / R2000

Frequency :865-868 MHz / 920-925 MHz / 902-928 MHz

Protocol: EPC C1 GEN2 / ISO18000-6C

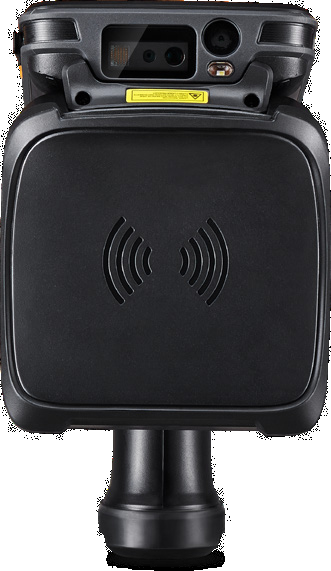

Antenna: Circular polarization (4dBi), linear polarization(1.8dBi)

Power:1 W (30 dBm, +5 dBm to +30 dBm adjustable)

2 W Optional (33 dBm, for Latin America, etc.)

Reading /Writing Range: Up to 15 m (circular polarization, open outdoors, Impinj MR6 tag);

up to 7 m (linear polarization, open outdoors)

Fastest Read Rate: 900+ tags/sec (circular polarization)

Ranges and rates depend on tags and environment
